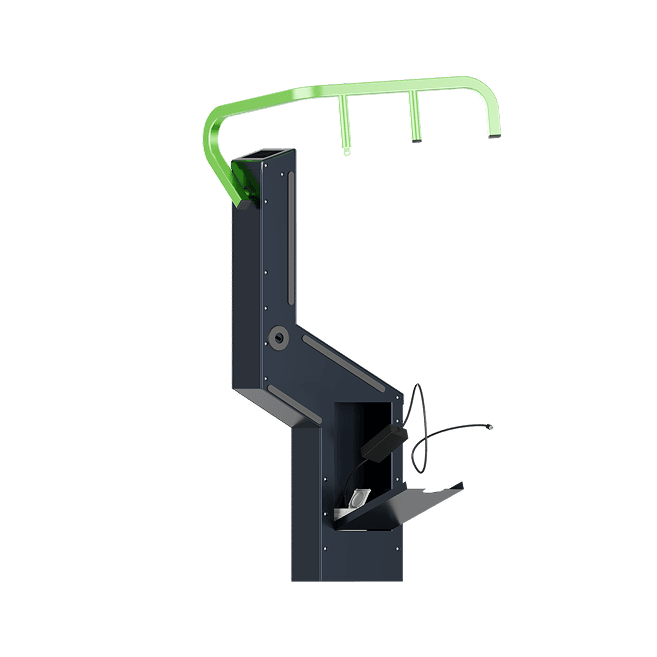

E-Bike Parking & Charging Station
SKU: G2-SPXX2X-1.5Secure parking + e-bike charging
A Bikeep e-bike charging station is a smart bike rack where every dock has a power outlet inside a lockable box. Riders plug in their own charger, and the bike and charger stay locked while charging. An optional relay cuts power after four hours, which fire-safety teams prefer for unattended sites.
Charging Docks
Indicates how many e-bikes can be parked and charged simultaneously.
What It Does

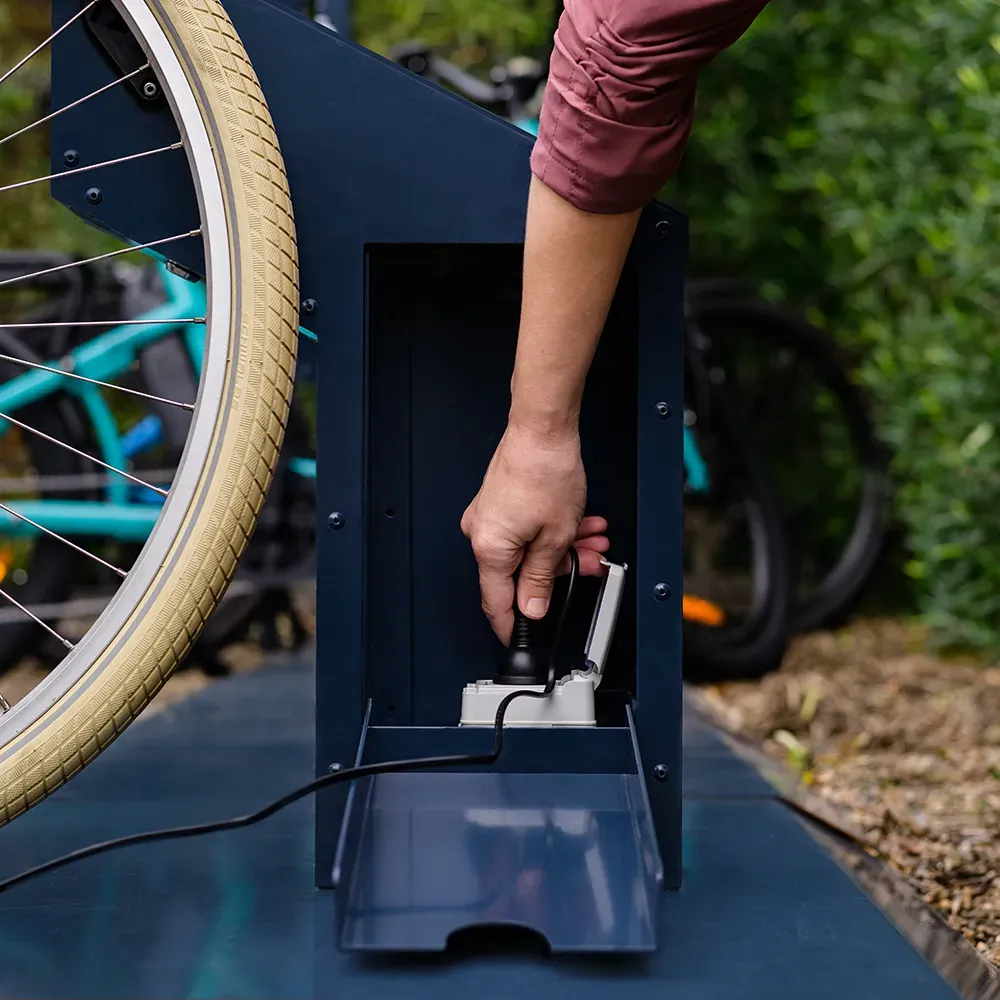

The E-bike Charging Station combines secure locking with integrated e-bike charging. Users bring their own charger, plug it into the dock, and both bike and charger are locked inside — secured while charging.
Unlike traditional charging stations with built-in chargers, Bikeep's bring-your-own-charger approach supports all e-bike brands and charger types. No compatibility issues, no adapter headaches.
Each station includes an electrical cabinet that manages power distribution and safety. Optional 4-hour fire safety relay automatically cuts power after 4 hours — recommended for unattended locations.
Power Consumption
Materials & Build
Standard Colors
Installation Guides
Technical Specifications
Main Features
Charge any e-bike — secure parking with integrated charging that works with every brand.

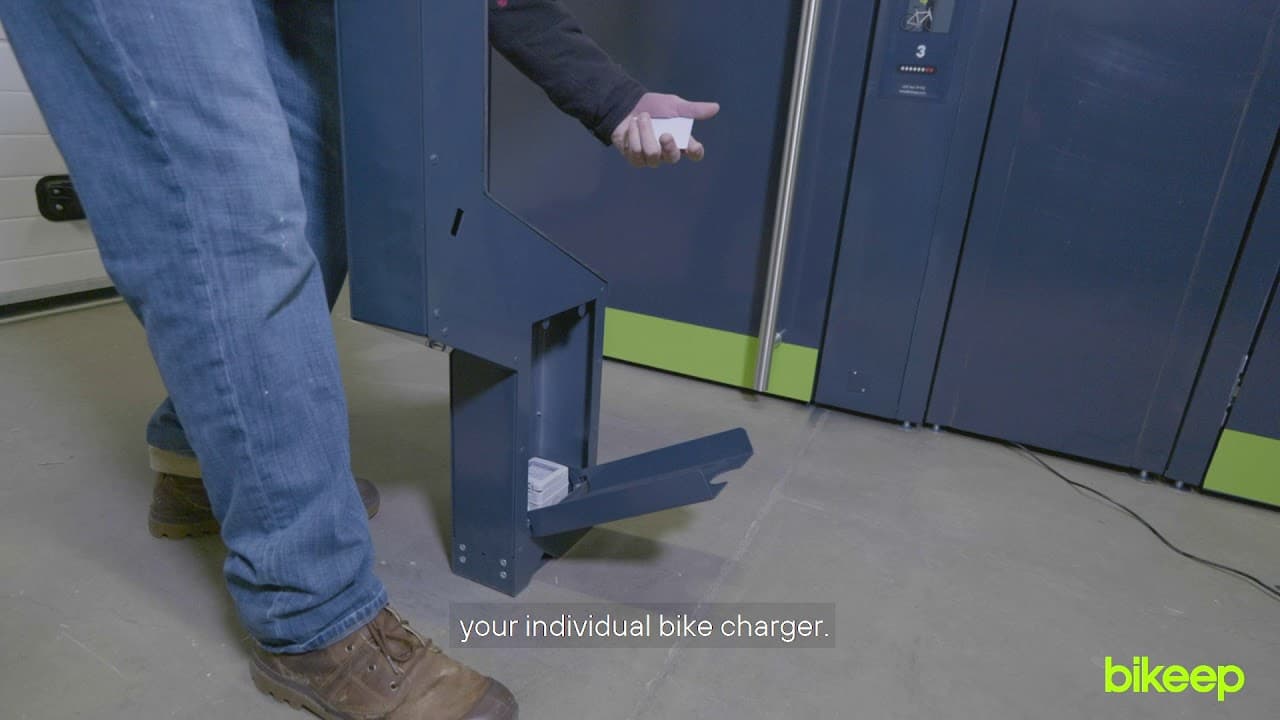

Bring Your Own Charger
Users plug in their own charger — supports all e-bike brands and charger types. No compatibility issues, no adapter headaches.

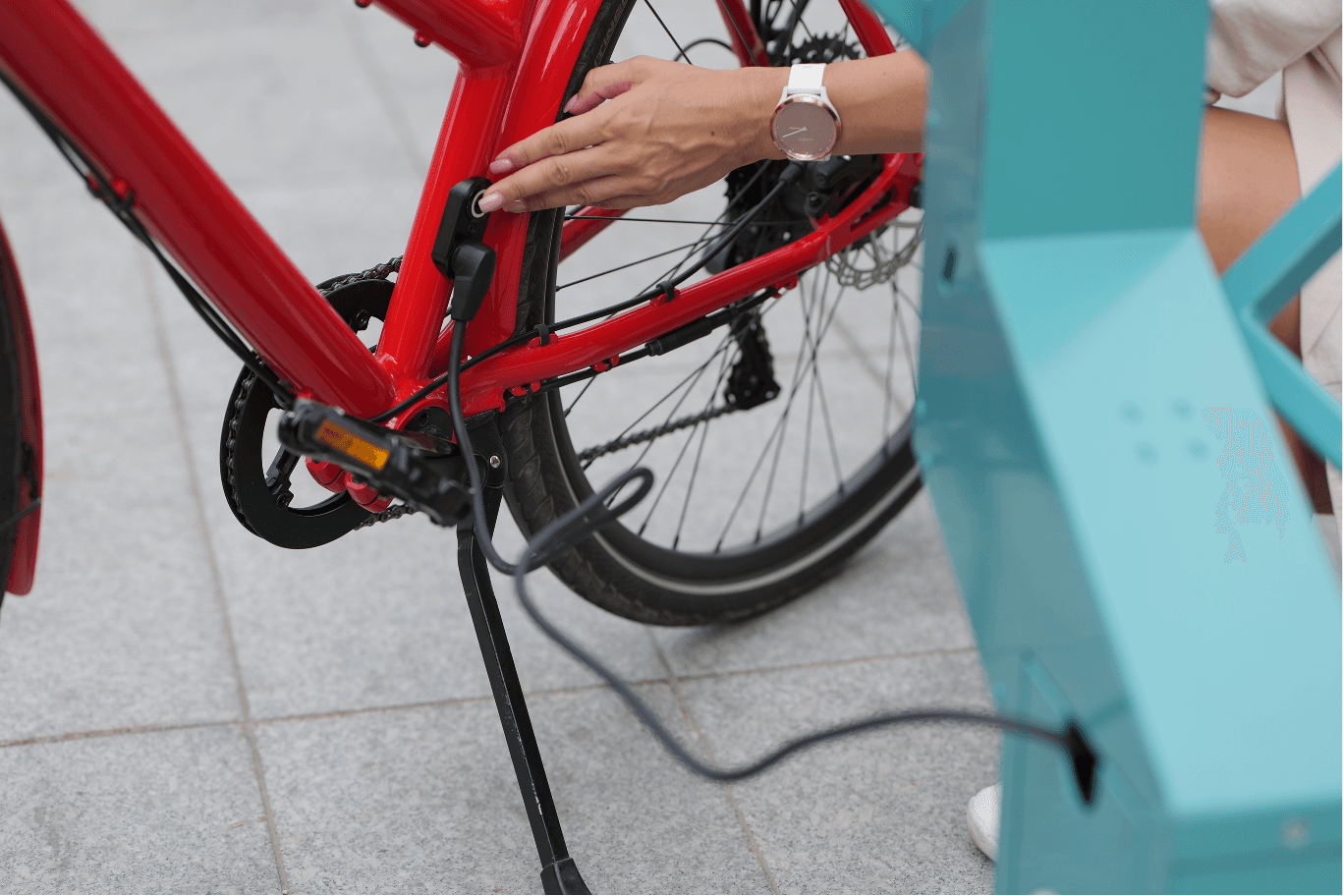

Dual Security Lock
The locking bar secures your bike frame while the charging compartment locks your charger inside. Both protected simultaneously.

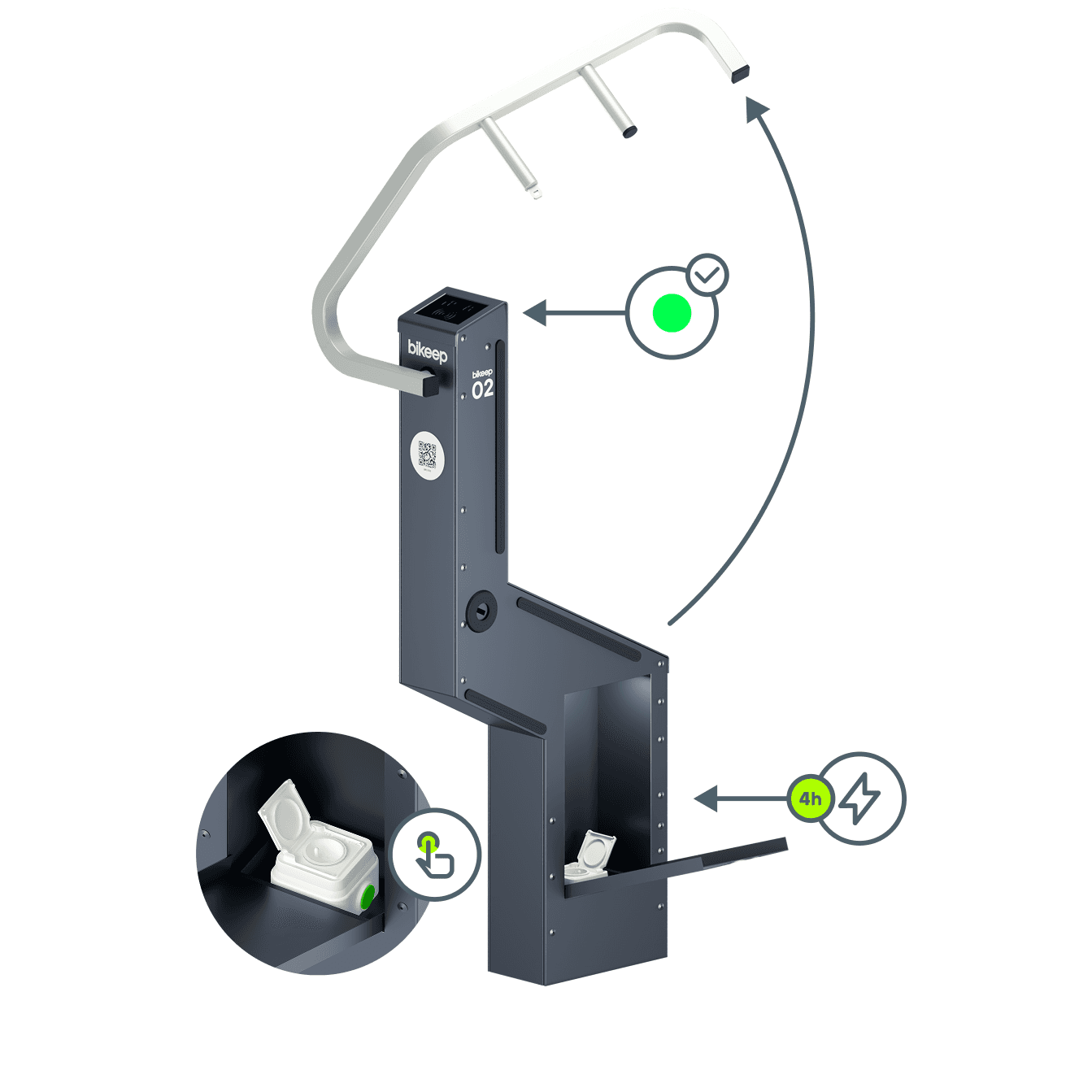

Fire Safety Relay
Optional 4-hour auto-cutoff relay automatically disconnects power — recommended for unattended and indoor locations.

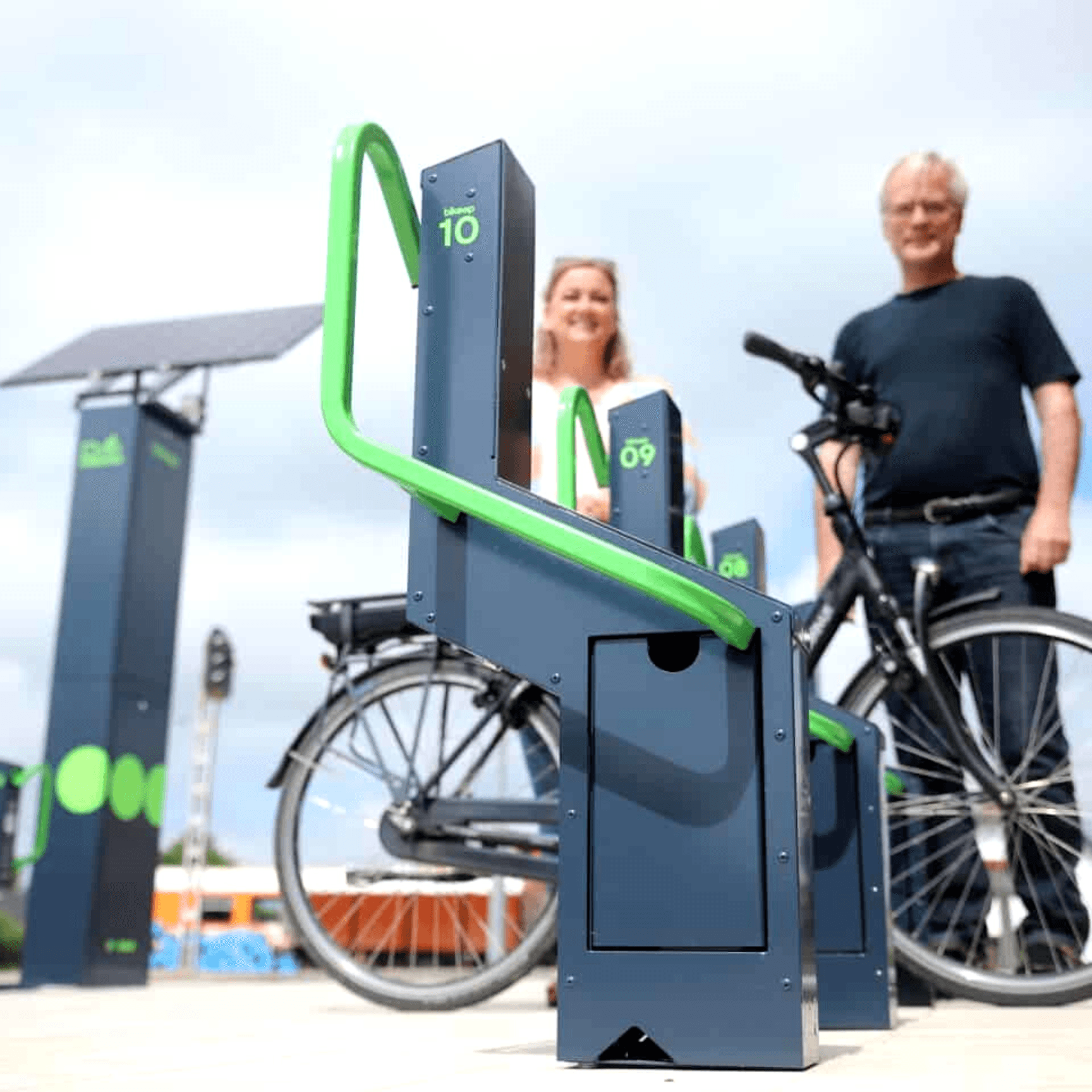

Managed Power Distribution
Built-in electrical cabinet manages power across all docks. One grid connection serves the entire station safely.

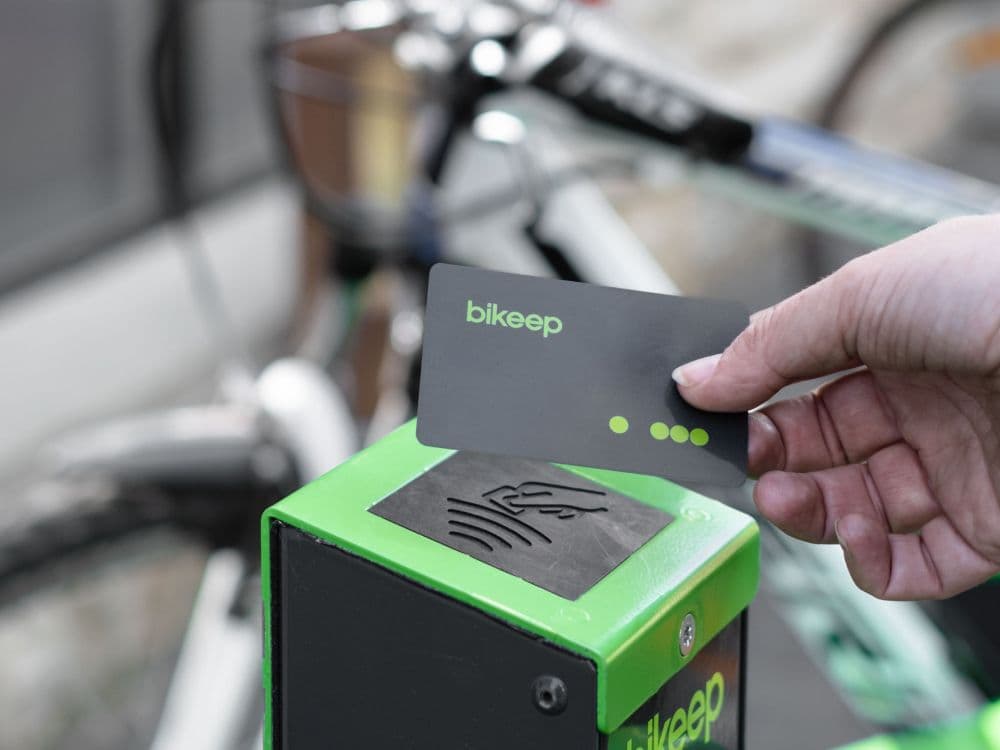

App & RFID Access
Authenticate with the free Bikeep app or any RFID/NFC card. Open dock, plug in, lock — done in seconds.

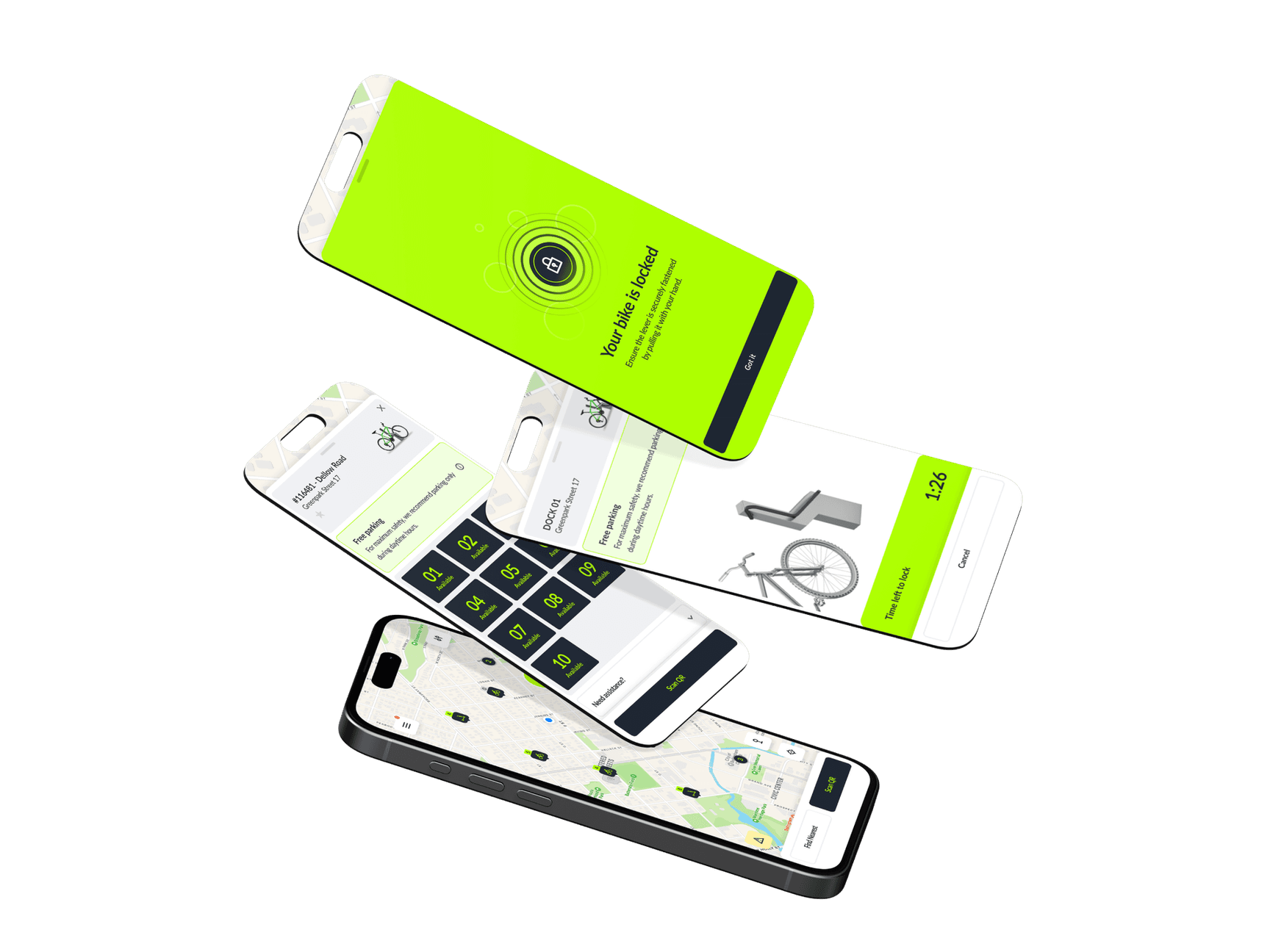

Remote Monitoring
Track power consumption, charging duration, and fire safety relay status across your network from console.bikeep.com.
Which e-bikes does it work with?
Bikeep's bring-your-own-charger approach sidesteps the compatibility issues that plague built-in charger stations. Users plug in the charger that came with their bike — the one designed to charge it safely and at the right rate.
Is e-bike charging safe in buildings?
Every dock includes circuit protection. The optional 4-hour fire safety relay automatically cuts power after charging — an essential add-on for parking garages, bike rooms, and unattended locations.
How much power does it need?
Each dock powers one e-bike charger, and a typical charger draws up to 300 W. Five docks charging at the same time add up to 1.5 kW, about as much as a hair dryer. On a 230 V supply that is 6.5 A, and on 110 V it is 14 A. A 10-dock station doubles this. The whole station runs from one single-phase connection, which your electrician sizes for this maximum. In daily use the load is lower, because chargers slow down as batteries fill and riders arrive at different times.
