Smart Bike Parking Station

SKU: G2-SPXX1X-1.5

Secure parking for every bike

Automated smart bike parking station — lock any bike in 3 seconds with app or RFID card. Two-point frame and wheel locking, commercial grade, outdoor rated. Cloud managed.

A smart bike parking station is a row of connected docks that lock a bike by its frame and wheel. Riders unlock with the Bikeep app or an RFID card, and operators manage every dock, user and payment from one dashboard. It works outdoors, covered or open, for any type of bike.

Frame and wheel locked together
Lock any bike in 3 seconds
Mount, power, go — no IT setup needed
Remote management from anywhere
Need help?

Parking Spaces

Select how many bikes your station holds.

10
520
Use CaseStandard Bike Parking Station
ConnectionPre-installed 4G industrial SIM card
BrandingRe-color or custom branding
PowerJust plug in — uses less power than a table lamp
Access TypeBikeep app, RFID/NFC cards
Managementconsole.bikeep.com — usage stats, access control
InstallationBolt down, connect power — live in hours
UpgradesCamera, Metal ground plates
Description

What It Does

The Smart Bike Parking Station provides secure, short-term bicycle parking for any standard bike frame. Each dock locks in 3 seconds using the Bikeep app or an RFID card, so the frame and the wheel stay locked to the dock.

Remotely managed from anywhere, the station gives you real-time usage data and full access control. No IT setup needed — just mount, connect power, and it's live.

Designed for corporate campuses, transit hubs, universities, and city buildings — anywhere you need to encourage cycling with genuinely secure parking.

Smart Bike Parking Station
Specifications

Power Consumption

5-dock10W / < 1A
10-dock12W / < 1A
15-dock16W / < 1A
20-dock20W / < 1A
Power input: 110/230VAC

Materials & Build

Sheet Metal2.5mm hot-dip galvanized
CorrosivityCategory C3
CoatingTeknos INFRALIT powder coating

Standard Colors

BodyRAL5008
Locking BarRAL9007
Architectural Resources
Architectural drawing
Product Sheet PDF
Documentation

Installation Guides

Technical Specifications

Main Features

Secure locking, simplified — everything you need for secure, smart bike parking.

Two-Point Frame Lock

Two-Point Frame Lock

Patented locking arm clamps the bike frame while a second pin secures the wheel — resists common theft tools.

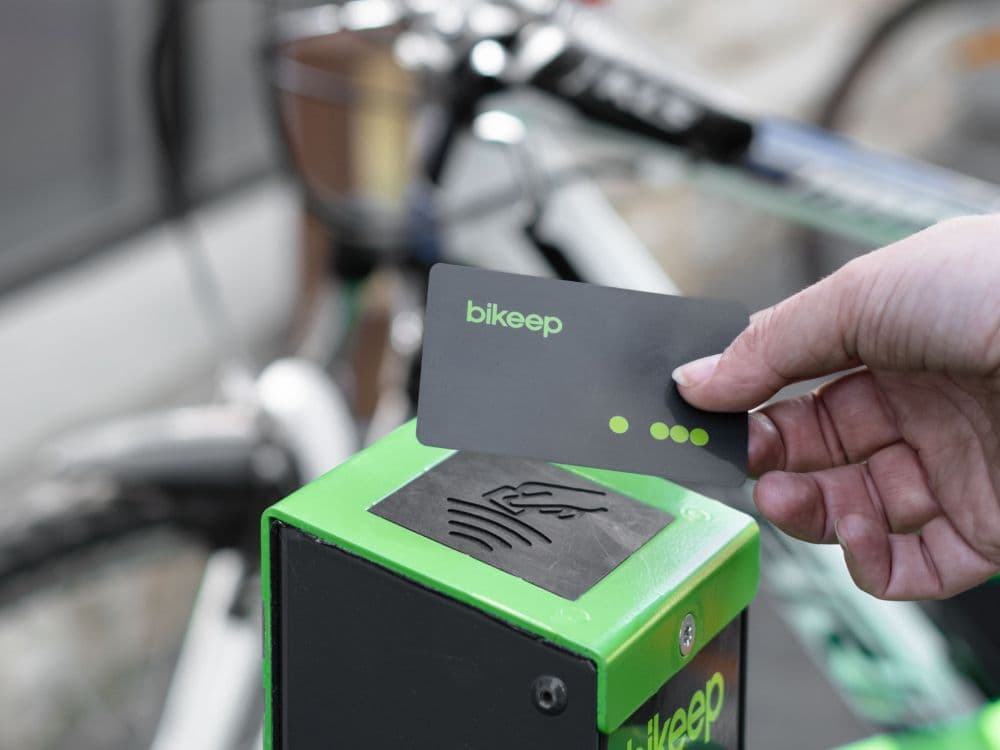

RFID & App Access

RFID & App Access

Unlock with the free Bikeep app or any RFID/NFC card. Lock your bike in 3 seconds flat.

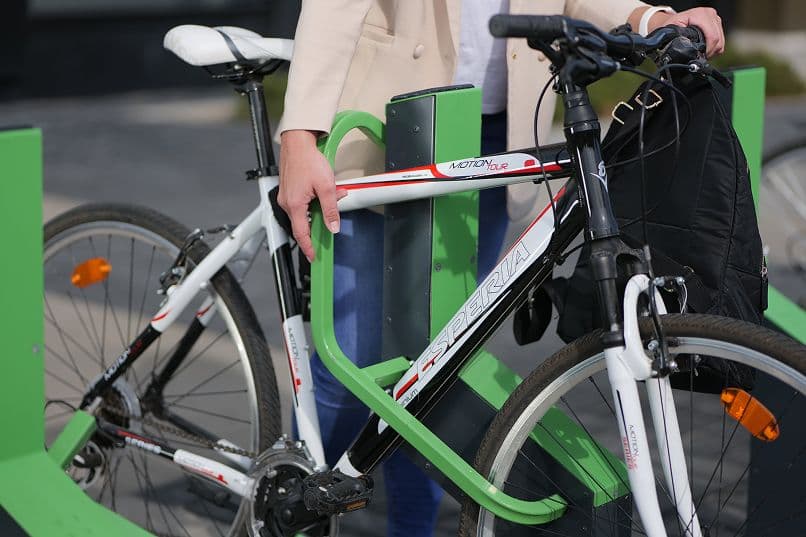

Frame and Wheel Locking

Frame and Wheel Locking

Two-point locking holds the frame and the front wheel, so a parked bike stays complete. Your people park with confidence and you stop fielding complaints.

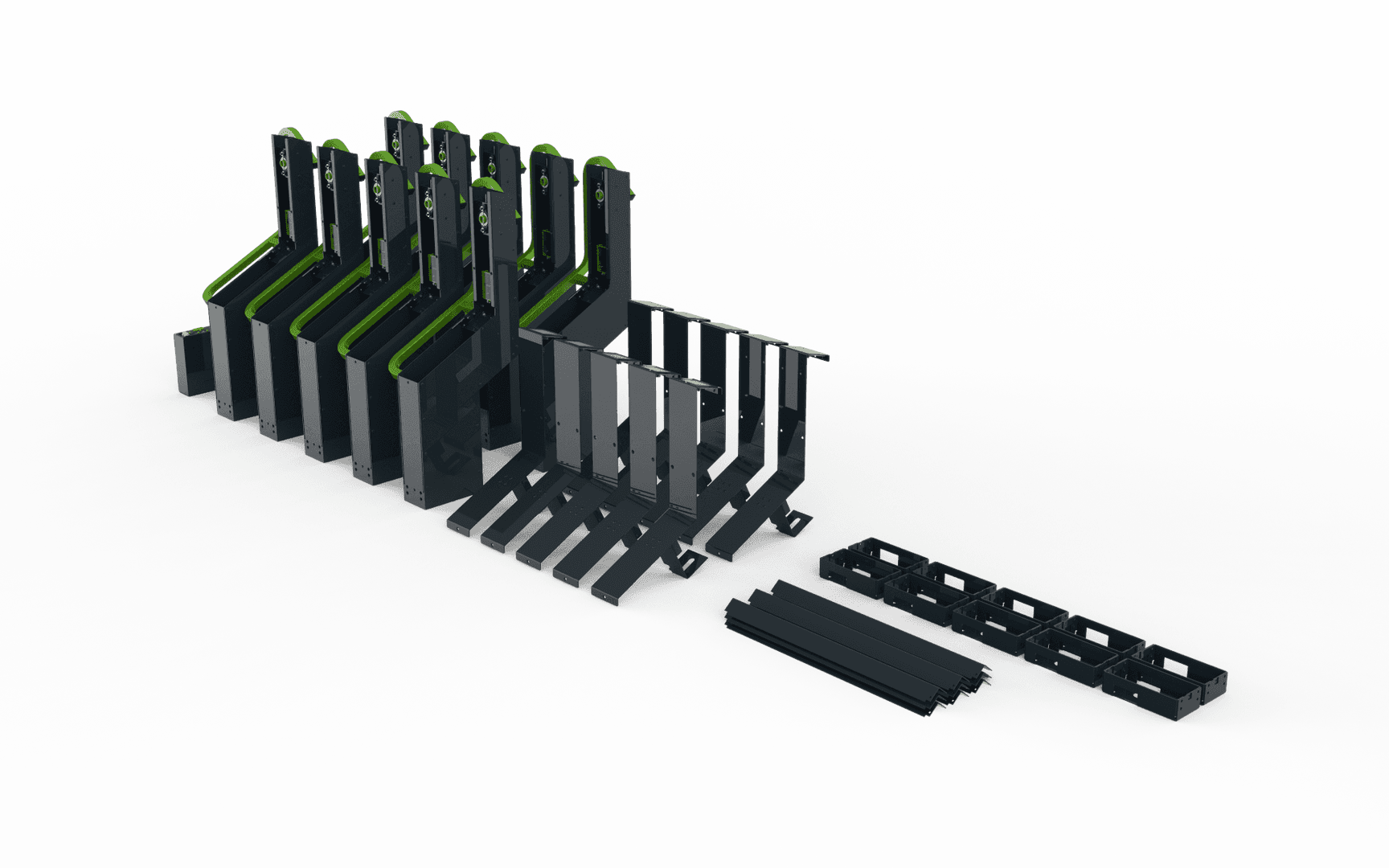

Plug-and-Play Install

Plug-and-Play Install

Bolt down, connect power, go. No IT setup, no electrician — station goes live in hours.

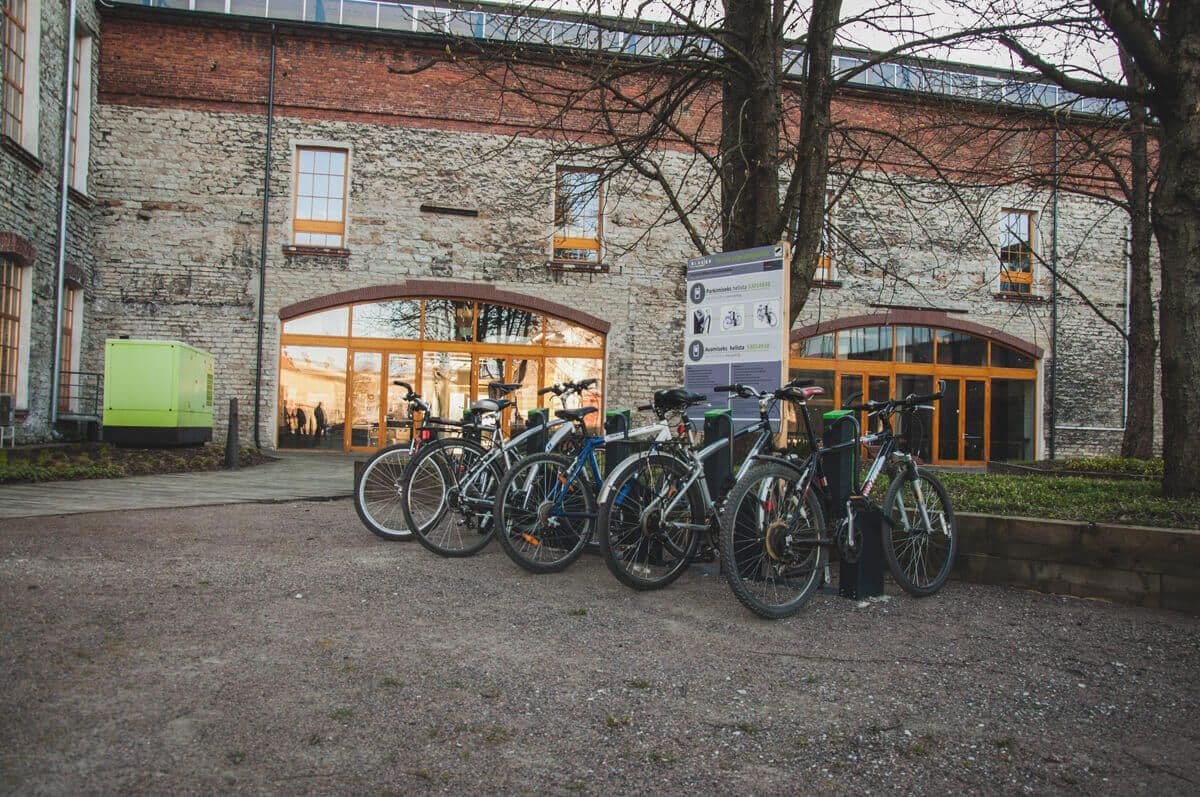

Ultra-Low Power

Ultra-Low Power

Uses less energy than a table lamp. A 20-dock station draws just 20W — barely noticeable on your power bill.

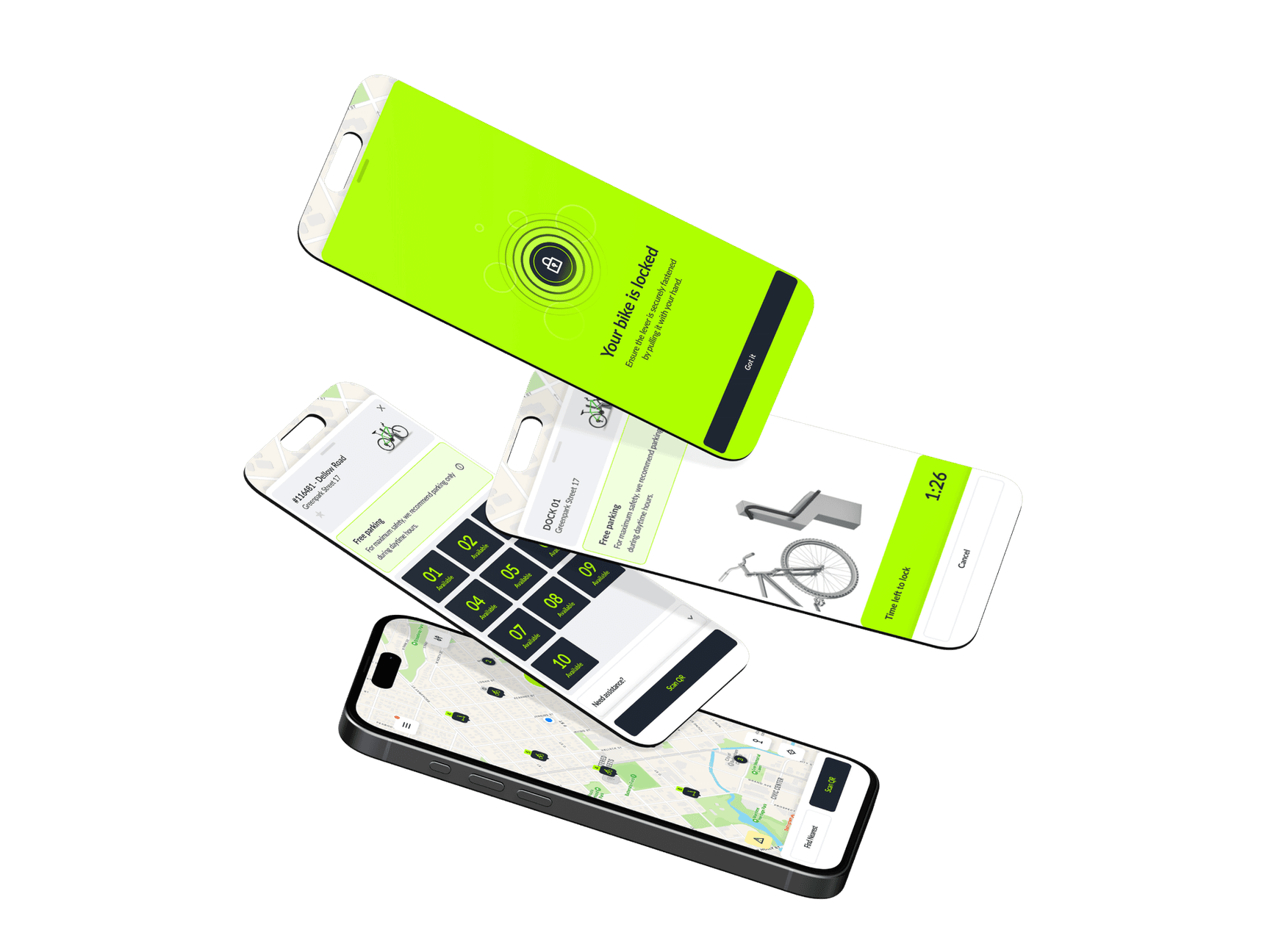

Cloud Management

Cloud Management

Monitor every station, dock, and session in real time from console.bikeep.com — usage stats, access control, remote management.

Security

Two-point locking that holds the frame and the wheel.

Two-point locking, built-in tamper alarm, and camera-ready mounts. Bikeep stations don't just park bikes — they protect them.

Patented frame + wheel locking
Loud speaker tamper alarm
Axis & Hikvision camera kits available
Two-point locking that holds the frame and the wheel.
Management

Every station, one dashboard.

Real-time usage data, remote access control, and network-wide analytics — all from console.bikeep.com.

Live dock status across all locations
User management by app, RFID, or access code
Export usage reports for stakeholders
Explore Console
Every station, one dashboard.
Security

What makes bike parking secure?

Secure bike parking does three things. It locks the frame and the wheel, so nothing can be lifted off a parked bike. It replaces keys and padlocks with the Bikeep app or an RFID card, so there is nothing to lose or copy. And it records who parked, where and for how long, so operators can see what happens at every dock.

See how riders park

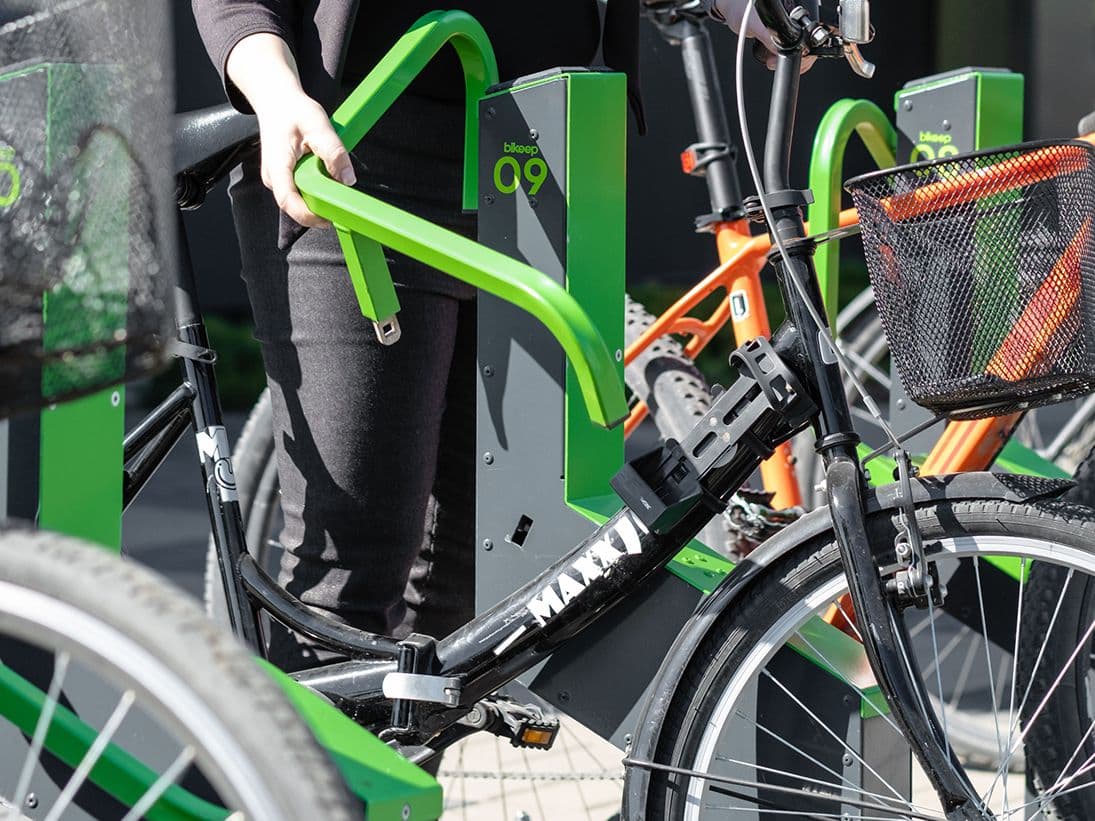

Bike being locked into a Bikeep dock by frame and wheel
Weather protection

Covered bike parking options

Smart docks work in the open or under any canopy or shelter. For full weather protection at stations and residential streets, the Fietshangar stores bikes inside a lockable group shelter, and smart bike lockers give each rider an enclosed box. Many sites combine docks for short stays with lockers or hangars for long stays.

Compare bike lockers
Bikeep smart bike parking docks in a covered bike room
Choosing a system

Racks, docks, lockers or shelters

Plain racks cost least but leave security to the rider's own lock. Smart docks lock the bike for the rider and suit short and medium stays with high turnover. Lockers and hangars enclose the bike and suit long stays and bad weather. The right mix depends on how long people park and how much space the site has.

Talk to us about your site

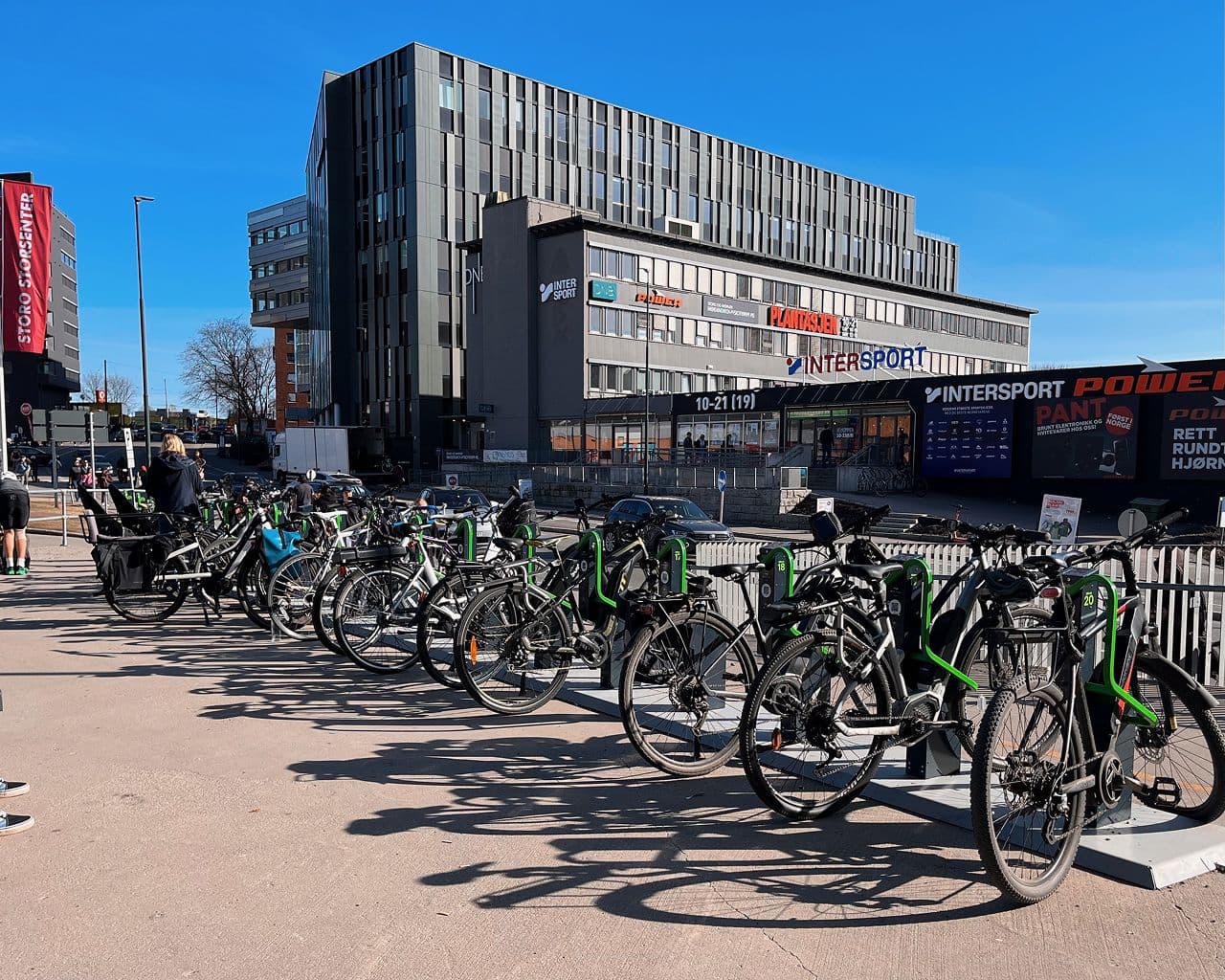

A 20-dock Bikeep station full of bikes at a city centre shopping centre
10 000+
STATIONS DEPLOYED
30+
COUNTRIES
13+
YEARS OF EXPERIENCE

How It Works

Three steps. That's it.

For Cyclist
How It Works, For Cyclist
1

Download free Bikeep App

Available on iOS and Android. Create account in 30 seconds.

2

Scan QR code on the device

Find an available dock, scan the QR code, and it unlocks.

3

Lock bike, walk away confident

Your bike is secured by a steel frame lock. Walk away knowing it will be there when you get back.

For Operators
How It Works, For Operators
1

Access cloud dashboard

Log in to the Bikeep Console to see every station, dock, and session in real time.

2

Monitor all stations

Real-time status, usage analytics, and remote management tools.

3

Manage users and access

Set stations to public or private. Add users by phone number, NFC card, or shared access code.

For Organisations
How It Works, For Organisations
1

Request a consultation

Our team will assess your needs and recommend the right setup for your site.

2

We install on your schedule

We handle installation and setup. Stations go live in hours, not weeks.

3

Ongoing support

Dedicated account management and 24/7 technical support.
