Smart Access for Any Bike Room.
Control who enters your bike room and when — with RFID cards, the Bikeep app, or both. One kit adds smart door access, camera monitoring, and real-time occupancy tracking to any secure parking space.
Works with your existing door and lock. Installs in under an hour. Goes online the moment you power on.
What the Kit Adds to Your Bike Room
Four capabilities that turn any parking space into a smart, secure bike room.

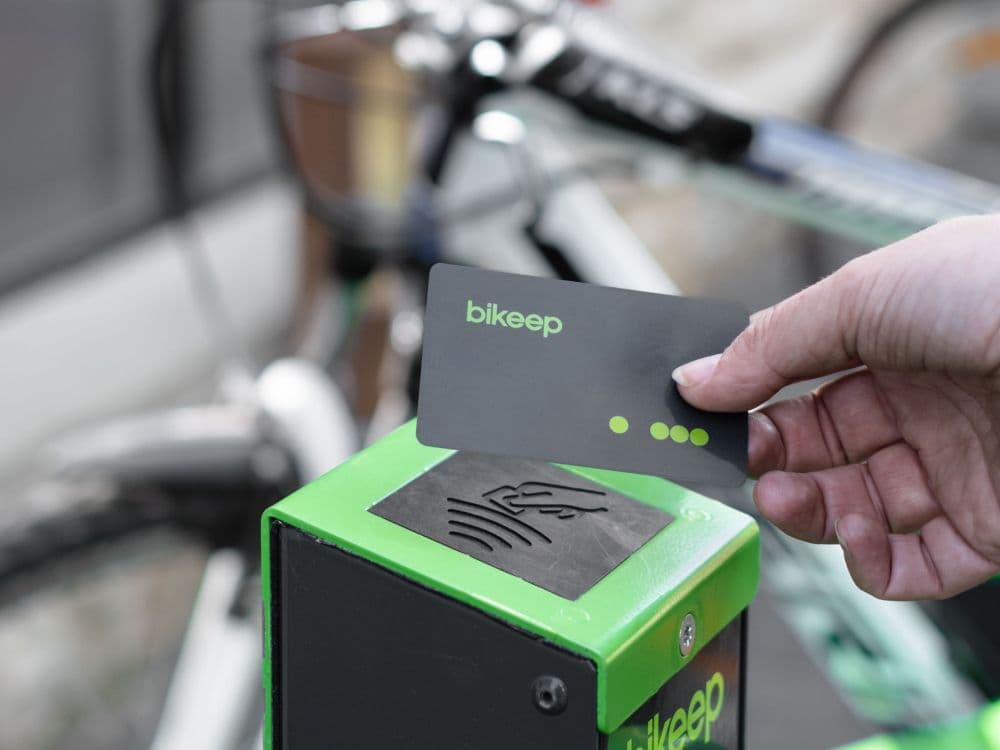

RFID, App, or Both — You Decide Who Enters
Mount the RFID reader next to your door. Users tap an RFID card (MIFARE, HID, LEGIC), transit card, or scan the QR code with the Bikeep app. The door strike activates and they enter. For simplified flow, Push-to-Start mode lets allowlisted cards unlock with a single tap. Build allowlists for employees, residents, or members. Set temporary access with expiration dates. Revoke access instantly — no key handover, no lock replacement.
RFID, App, or Both — You Decide Who Enters
Mount the RFID reader next to your door. Users tap an RFID card (MIFARE, HID, LEGIC), transit card, or scan the QR code with the Bikeep app. The door strike activates and they enter. For simplified flow, Push-to-Start mode lets allowlisted cards unlock with a single tap. Build allowlists for employees, residents, or members. Set temporary access with expiration dates. Revoke access instantly — no key handover, no lock replacement.
What's in the Kit
A complete access control system — pre-configured with a global SIM card and ready to install.

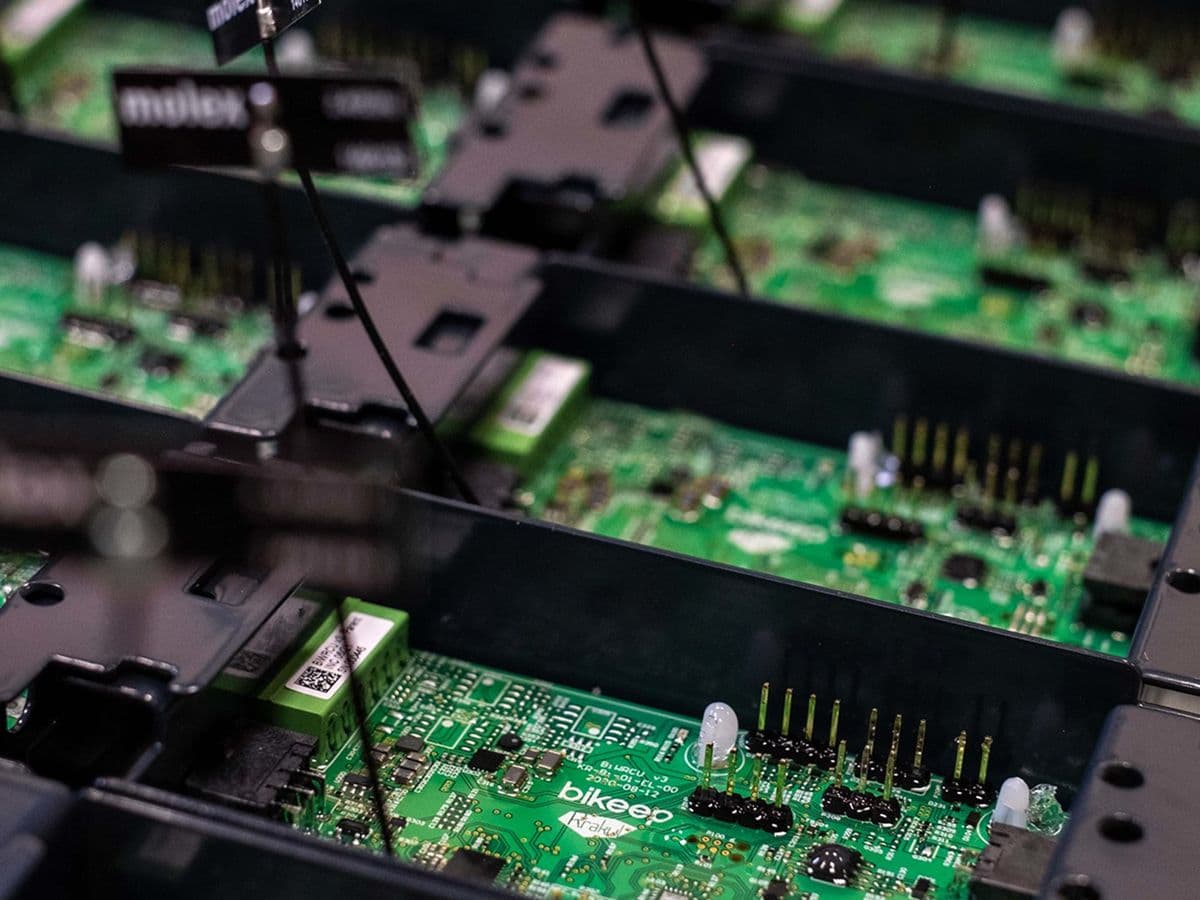

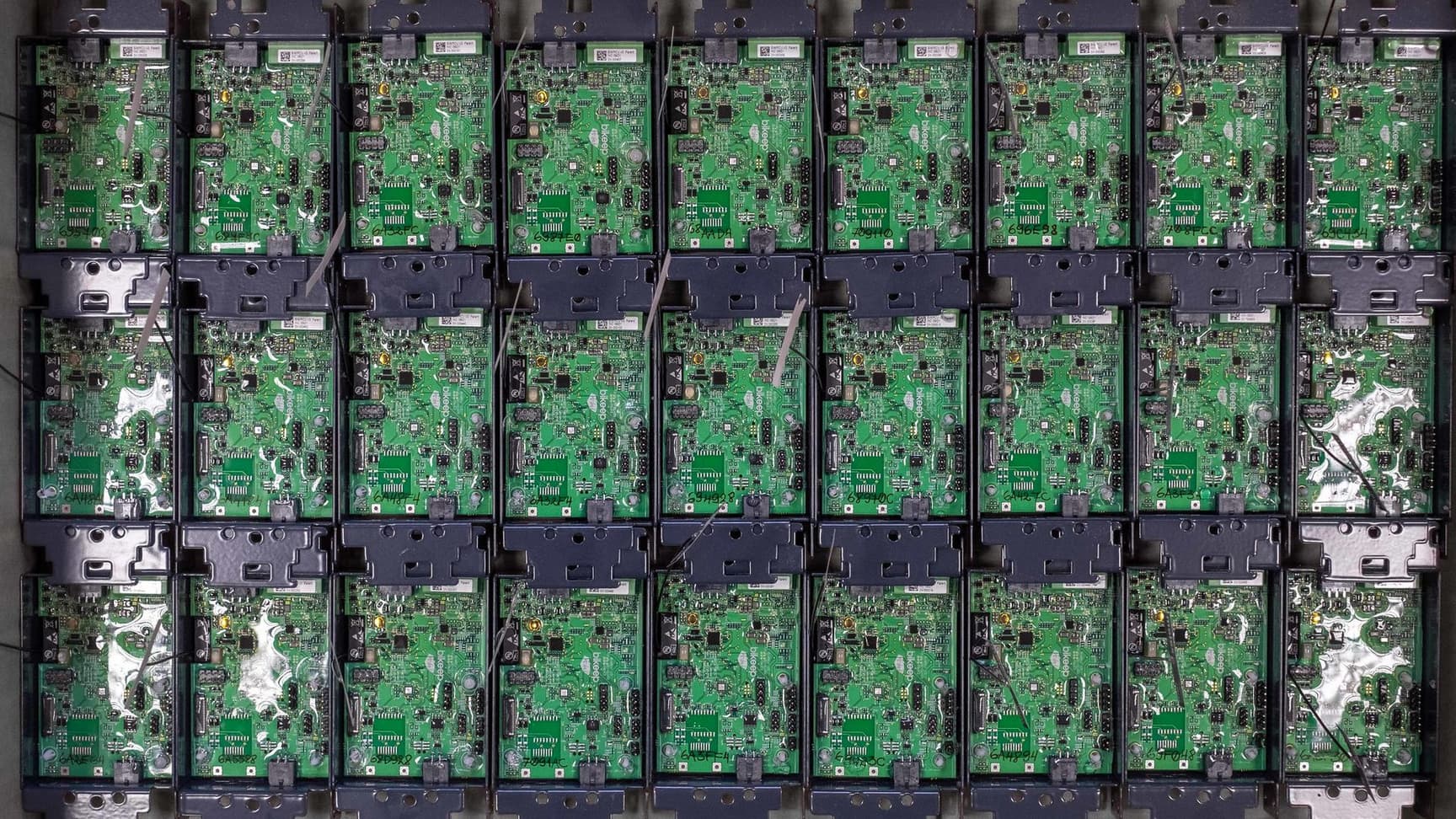

Access Controller
The central unit that manages door access, camera, and connectivity. Pre-installed 4G SIM card for internet access — no Wi-Fi required. Connects to the Bikeep Console automatically on power-up.
RFID Reader
Weatherproof RFID/NFC reader supporting MIFARE, HID, LEGIC, and transit cards at 13.56 MHz, with integrated QR code for app access. Audio signals and LED indicators provide immediate feedback for successful or failed authentication. Connects via a 10m cable (extendable to 15m).

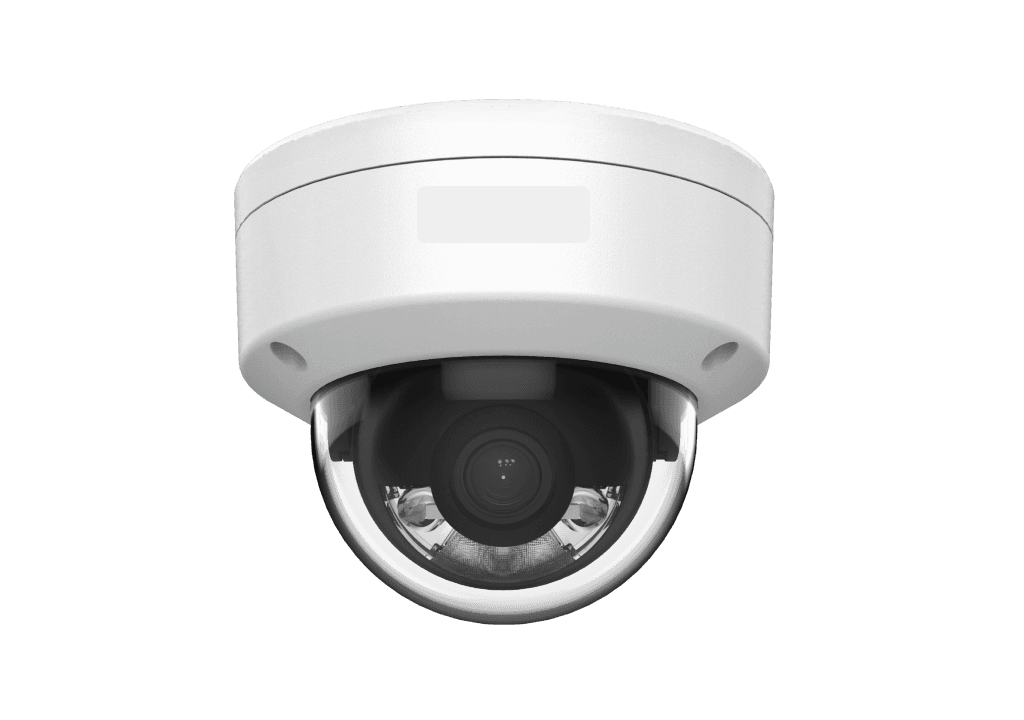

Camera System
Bikeep default camera system for visual verification of entry events. Integrates directly with the access controller — no separate DVR or NVR required. Images accessible from the Bikeep Console.

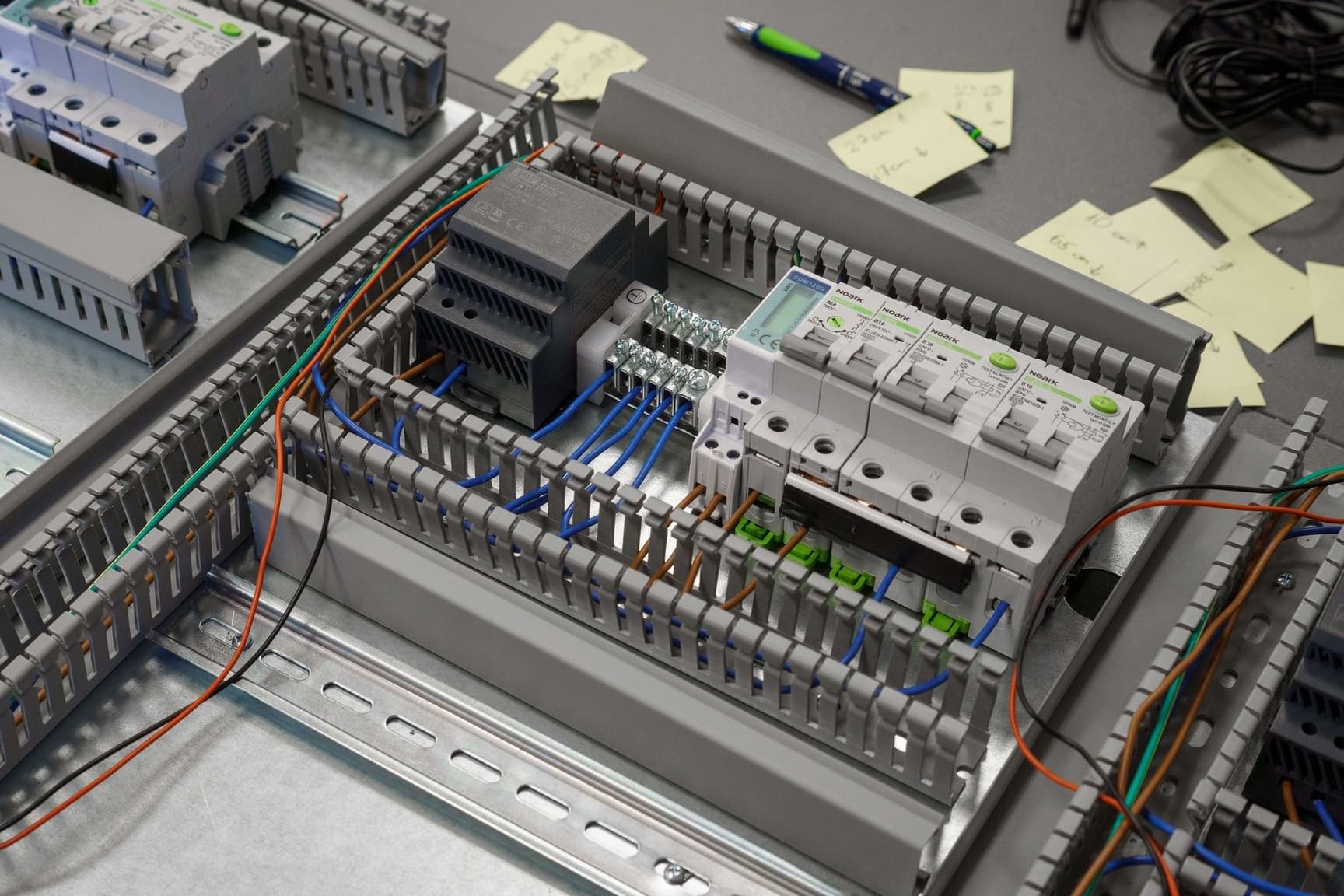

Power Supply
Industrial power supply (110–230 VAC to 24 VDC). Powers the controller, RFID reader, and camera. Optionally works with batteries and solar panels for off-grid locations. Compatible with standard electrical installations.
Door Sensor
End-switch sensor for detecting door status — open or closed. Enables occupancy tracking and alerts for doors left open. Simple two-wire installation.
4G Outdoor Antenna
External antenna for reliable cellular connectivity. Ensures strong signal even in basement bike rooms or concrete structures where indoor reception is weak.

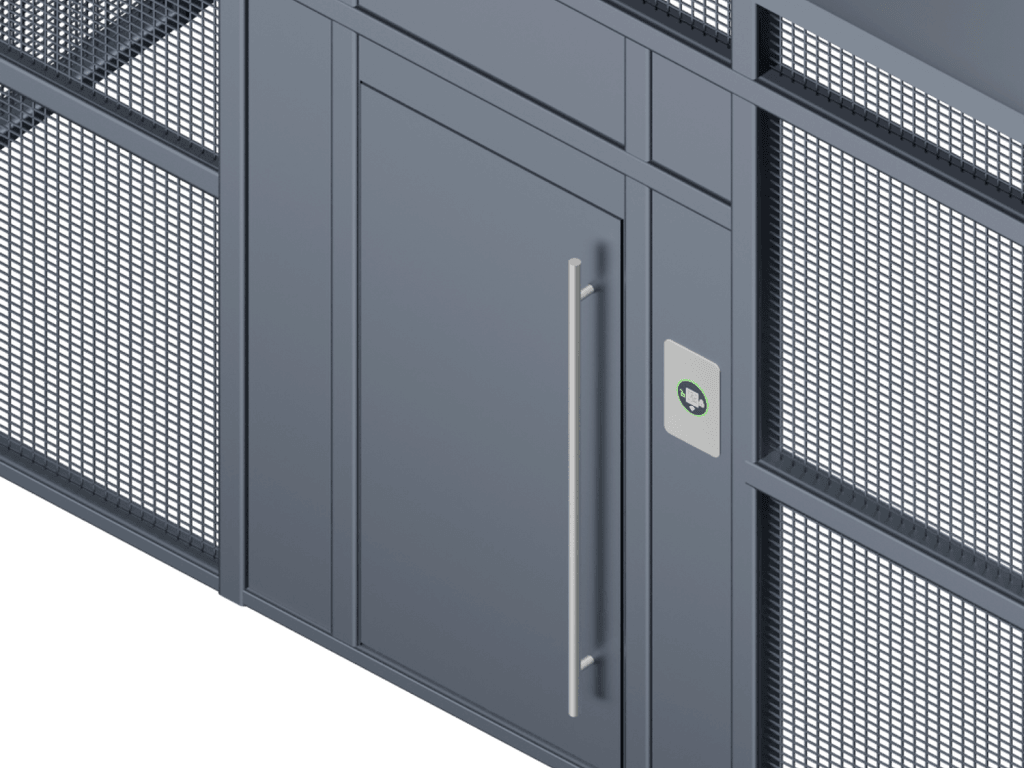

Works with Your Existing Door
The kit supports standard 12V electric door strikes and dry-contact door controllers — the same types used in most commercial and residential buildings. No door replacement needed. If your building has an automatic swing door operator, the kit's dry contacts integrate directly.
Recommended Bike Room Setup
The standard configuration for adding smart door access, camera monitoring, and occupancy tracking to any bike room.
Access Controller + RFID Reader + Camera + Door Sensor
One Access Controller manages everything — door strike, RFID reader, camera, and door sensor. Pre-installed global SIM card for 4G connectivity. Works with standard 12V electric strikes and dry-contact door controllers.
Door Access
RFID card (MIFARE, HID, LEGIC), transit card, or Bikeep app authentication. Allowlists, access schedules, and temporary credentials — all managed remotely.
Camera Verification
Visual verification of every entry event. Images accessible from the Bikeep Console for security review.
Occupancy Data
Real-time occupancy tracking via door sensor. Know how many people are in the room and when peak usage occurs.
Remote Unlock
Trigger door unlock remotely for deliveries, maintenance, or emergencies — from your browser or phone.
How It Works
Simple for your users, powerful for building managers.
Approach the Door
Walk up to the bike room entrance where the RFID reader is mounted.
Tap or Scan
Place your RFID card on the reader or scan the QR code with the Bikeep app. The LED turns green and you hear a confirmation beep.
Enter and Park
The door unlocks automatically. Park your bike inside. The system logs your entry with timestamp and identity.

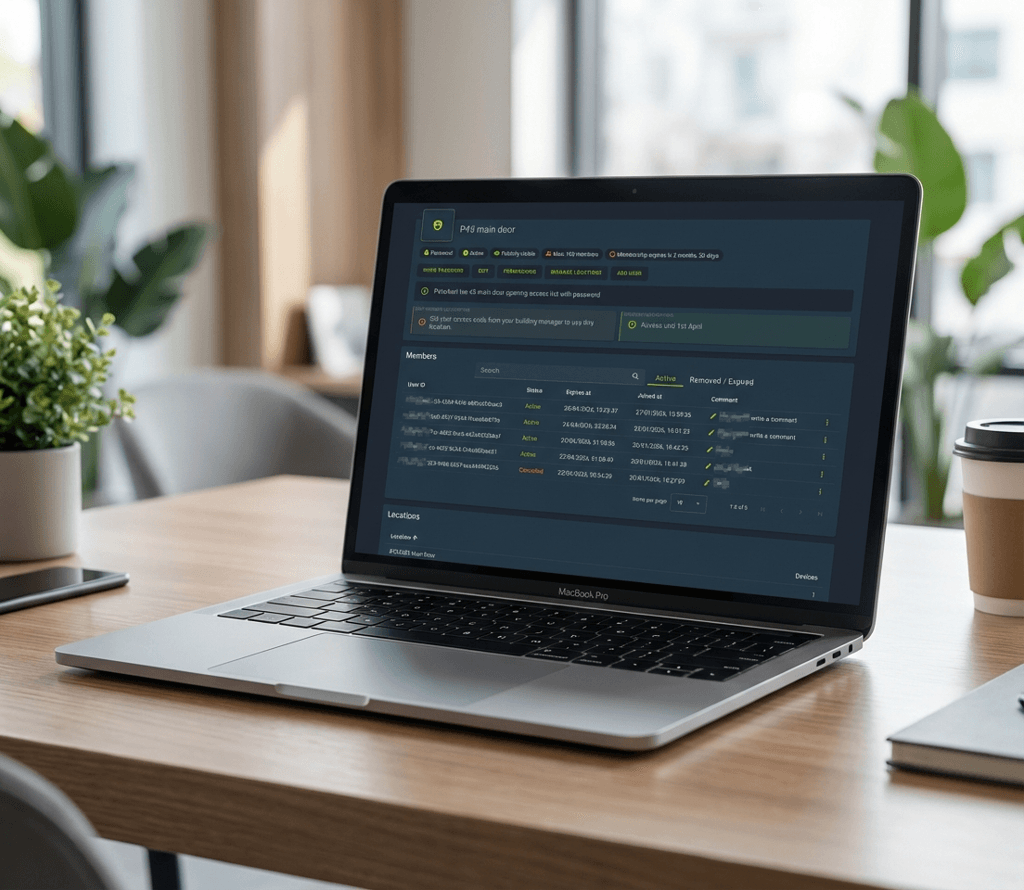

Set Up Access Lists
Add employees or residents by RFID card number, phone number, or CSV import. Set access schedules and temporary credentials with expiration dates.
Monitor the Room
Real-time occupancy, entry/exit logs, and camera images — all in the Bikeep Console. Get alerts if the door is left open or if unauthorized access is attempted.
Report on Usage
Generate reports on peak hours, average occupancy, and user activity. Use data to justify adding capacity or adjusting access policies.
